The Max Blank Fireplace Insert KE1 AM is ideal for replacing existing fireplace systems. With efficient heating technology and modern design, it provides cozy warmth and integrates seamlessly into various interior styles. Easy to install, it is the perfect solution for modern heating system optimization.

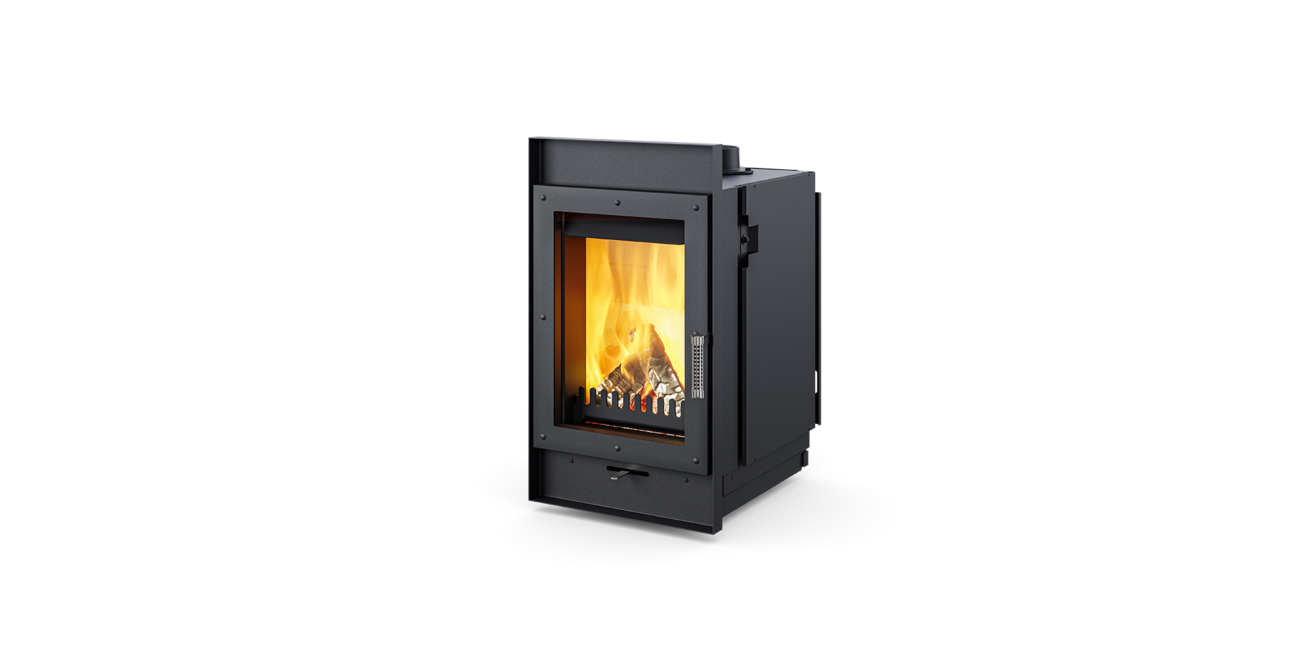

KE 1 Ökofire AM, Fireplace Insert for replacement
Data and facts
Technical data
| measurments KE 1 AM 79 x 48 | H x W x D 79 x 48 x 65 cm |
| measurments KE 1 AM 83,5 x 48 | H x W x D 83,5 x 48 x 65 cm |
| measurments KE 1 AM 89,5 x 48 | H x W x D 89,5 x 48 x 65 cm |
| installation dimensions | H x W x D 74 x 43 x 52 cm |
| combustion chamber | H x W x D 31 x 34 x 35 cm |
| fire glass | H x W 49 x 34 cm |
| fire door | H x W 60 x 45 cm |
| air inlet and outlet opening | Ø 800 cm² |
| top flue connection | Ø 15 cm |
| air inlet connection | Ø 10 cm |
| height to flue connection | 74 cm |
| total weight | 155 kg |
| chamotte bricks | 60 kg |
Data for firewood
| nominal heat output | 7,5 kW |
| room heat output | 7,5 kW |
| fuel | 2,2 kg/h |
| efficiency | 83% |
| flue gas flow volume | 6,8 g/s |
| exhaust °C (nozzle) | 280° C |
| min. feed press. | 12 Pa |
| CO (13%O2) | 0,065 % |
| CO (13%O2) | 806 mg/m³ |
| dust (13%/O2) [mg/m³] | 32 mg/m³ |
| NOx (13%O2) | 116 mg/m³ |
| OGC (CxHy) (13%O2 | 27 mg/m³ |
Data for Pellet System Insert KO1
| nominal heat output | 8,7 kW |
| room heat output | 8,7 kW |
| max. fuel | 7,5 kg |
| efficiency | 83% |
| flue gas flow volume | 9,71 g/s |
| exhaust °C (nozzle) | 280° C |
| min. feed press. | 12 Pa |
| CO (13%O2) | 0,086 % |
| CO (13%O2) | 1073 mg/m³ |
| dust (13%/O2) [mg/m³] | 22 mg/m³ |
| NOx (13%O2) | 73 mg/m³ |
| OGC (CxHy) (13%O2 | 64 mg/m³ |
Data for chimney calculation
| flue gas flow volume | 16,1 g/s |
| exhaust °C (nozzle) | 559° C |
| min. feed press. | 15 Pa |
| firing performance | 25,5 kW |
- steel corpus anthracite
- Top Flue Outlet Ø 15 cm
- External Air Connection Possible and Prepared (Must Be Specified When Ordering)
- Door Hinge on the Left (Right Hinge Available Upon Request)
- Mounting frames in custom colors and sizes available upon request.
Compatible pellet system inserts
Accessories
- Convection jacket
- Support Bearings and Additional Accessories Available Upon Request
