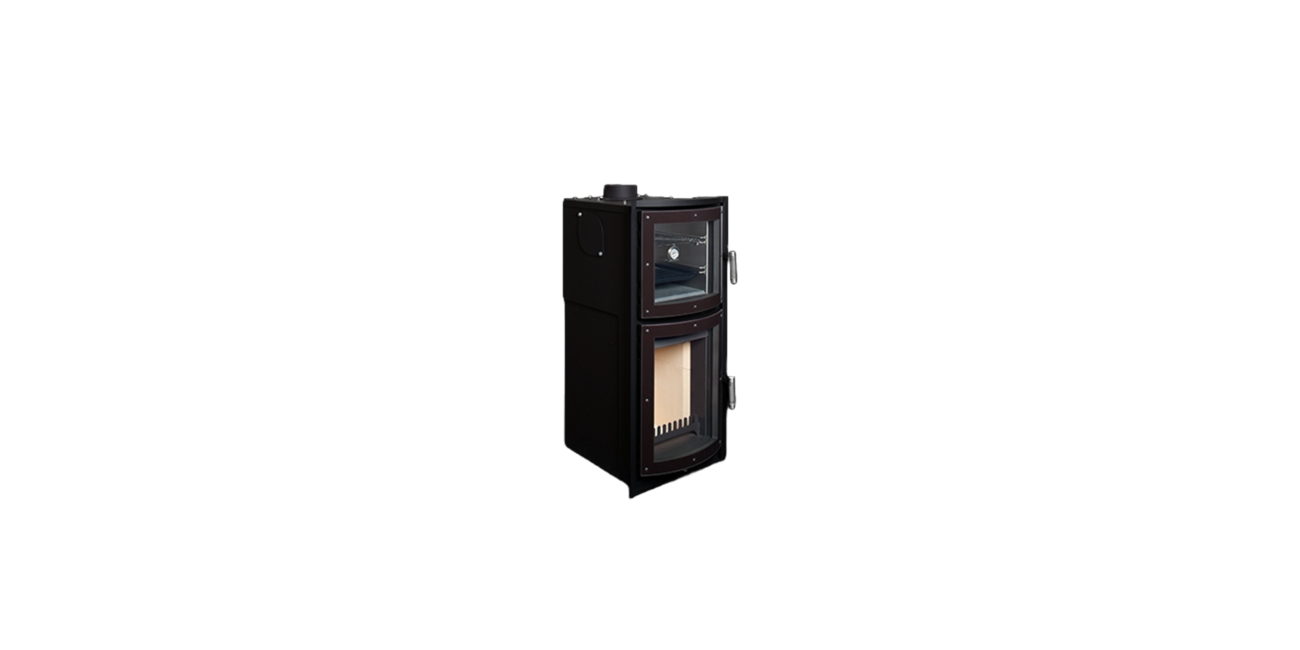

The Max Blank KE1 Fireplace Insert with a baking compartment combines efficient heating performance with practical culinary features. Crafted with high-quality materials and durability in mind, the KE1 seamlessly integrates into any living space, offering a stylish combination of warmth and cooking functionality. It can be operated with either wood or pellets, providing exceptional flexibility—all without electricity.
Request productKE 1 Ökofire with baking compartment - curved door
Data and facts
Technical data
| measurements | H x W x D 127 x 47 x 66 cm |
| installation dimensions | H x W x D 120 x 46 x 53 cm |
| combustion chamber | H x W x D 31 x 34 x 35 cm |
| baking compartment | H x W x D 30 x 34 x 45 cm |
| fire glass | H x B 49 x 34 cm |
| fire glass radius | 41 cm |
| fire door | H x B 60 x 45 cm |
| door baking compartment | H x B 42 x 45 cm |
| air inlet and outlet opening | Ø 800 cm² |
| top flue connection | Ø 15 cm |
| air inlet connection | Ø 10 cm |
| height to flue connection | 120 cm |
| total weight | 244 kg |
| chamotte bricks | 60 kg |
Data for firewood
| nominal heat output | 7,5 kW |
| room heat output | 7,5 kW |
| fuel | 2,2 kg/h |
| efficiency | 83% |
| flue gas flow volume | 6,8 g/s |
| exhaust °C (nozzle) | 280° C |
| min. feed press. | 12 Pa |
| CO (13%O2) | 0,065 % |
| CO (13%O2) | 806 mg/m³ |
| dust (13%/O2) [mg/m³] | 32 mg/m³ |
| NOx (13%O2) | 116 mg/m³ |
| OGC (CxHy) (13%O2 | 27 mg/m³ |
Data for Pellet System Insert KO1
| nominal heat output | 8,7 kW |
| room heat output | 8,7 kW |
| max. fuel | 7,5 kg |
| efficiency | 83% |
| flue gas flow volume | 9,71 g/s |
| exhaust °C (nozzle) | 280° C |
| min. feed press. | 12 Pa |
| CO (13%O2) | 0,09 % |
| CO (13%O2) | 1073 mg/m³ |
| dust (13%/O2) [mg/m³] | 22 mg/m³ |
| NOx (13%O2) | 73 mg/m³ |
| OGC (CxHy) (13%O2 | 64 mg/m³ |
- steel corpus anthracite
- Top Flue Outlet Ø 15 cm
- External Air Connection Possible and Prepared (Must Be Specified When Ordering)
- Door Hinge on the Left (Right Hinge Available Upon Request)
- Included in the delivery: roasting and baking tray, chrome oven rack, easy-to-clean anthracite lava baking stone, thermometer for the baking compartment
Compatible pellet system inserts
Accessories
- Decorative Frame 53 x 116 x 3 cm (3-sided, anthracite)
- Decorative Frame 53 x 117 x 3 cm (4-sided, anthracite)
- Convection Jacket
- Support Bearings and Additional Accessories Available Upon Request
