Our Rio S model has been a favorite among our customers for many years thanks to its classic and particularly timeless design. With a wide range of cladding options, you can choose between Steel, Natural Stone, or Ceramic for this Stove. The Rio S can be operated either with firewood or with our electricity-free Pellet System Inserts KO2 S and KO2 XL.

Request product

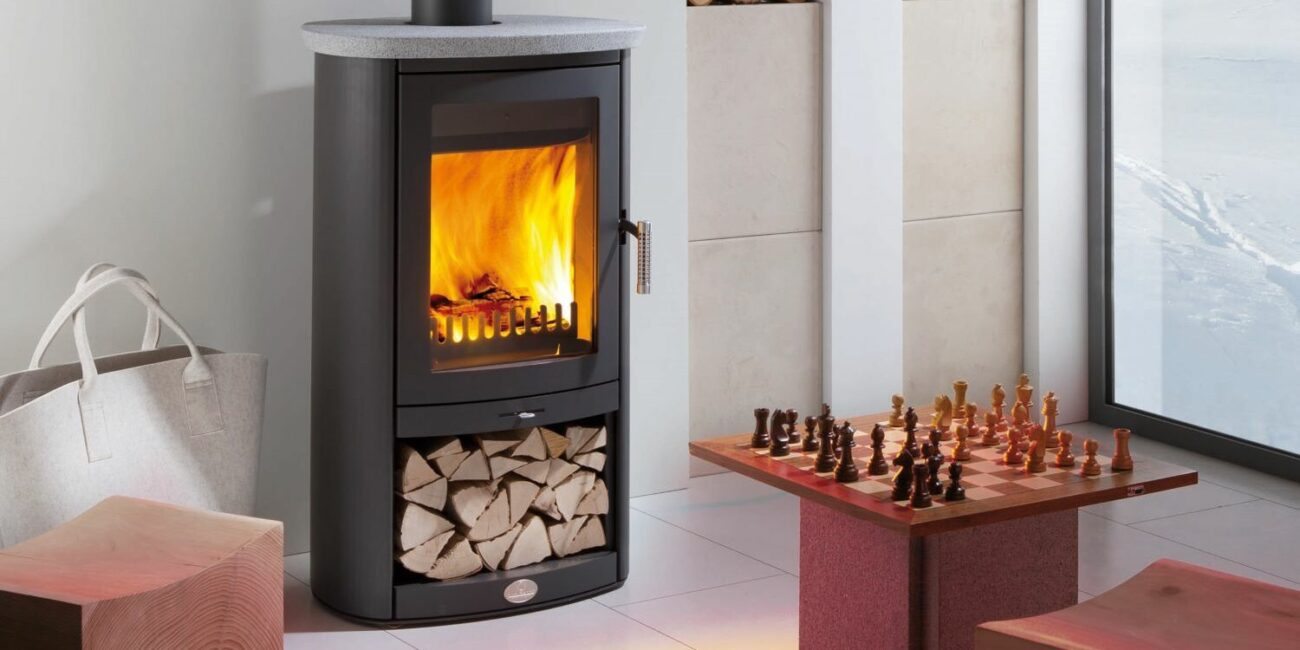

Rio S Steel, Stove made of steel

steel anthracite

Data and facts

Technical data

measurements (cm)	H x W x D 103 x 65 x 51,5 cm
combustion chamber	H x W x D 30 x 37 x 29 cm
fire glass	H x W 47,5 x 34 cm
fire door	H x W 58,5 x 45 cm
total weight	175 kg
chamotte bricks	26 kg

Data for firewood

nominal heat output	6,5 kW
output range	6,5 - 3,3 kW
efficiency	83%
heating capability	70 - 250 m³

amount of fuel	2,9 kg / h
fire duration	up to 5 h
heat release	up to 12 h

flue gas flow volume	10,3 g/s
exhaust °C (nozzle)	268 °C
min/max feed press.	12 / 15 Pa

CO (13%O2)	1074 mg/m³
CO (13%O2)	0,086 %
dust (13%/O2) [mg/m³]	31 mg/m³
NOx (13%O2)	110 mg/m³
OGC (CxHy) (13%O2)	51 mg/m³

Data for Pellet System Insert KO2 S

nominal heat output	7,5 kW
output range	7,5 - 5 kW
efficiency	87%
heating capability	50 - 150m³

amount of fuel	3,8 kg
fire duration	up to 2,5 h
heat release	up to 10 h

flue gas flow volume	8,97 g/s
exhaust °C (nozzle)	180 °C
min/max feed press.	12 / 15 Pa

CO (13%O2)	1166 mg/m³
CO (13%O2)	0,093 %
dust (13%/O2) [mg/m³]	36 mg/m³
NOx (13%O2)	109 mg/m³
OGC (CxHy) (13%O2)	54 mg/m³

Data for Pellet System Insert KO2 XL

nominal heat output	11 kW
output range	11 - 8,5 kW
efficiency	85%
heating capability	70 - 250 m³

amount of fuel	7,5 kg
fire duration	up to 5 h
heat release	up to 13 h

flue gas flow volume	10,74 g/s
exhaust °C (nozzle)	230 °C
min/max feed press.	12 / 15 Pa

CO (13%O2)	880 mg/m³
CO (13%O2)	0,070 %
dust (13%/O2) [mg/m³]	30 mg/m³
NOx (13%O2)	110 mg/m³
OGC (CxHy) (13%O2)	51 mg/m³

Distances to combustible walls / components

wall distance, rear	15 cm (20 cm with Pelletbox XL)
wall distance, rear	15 cm
distance to the front	80 cm

Flue pipe connection Ø 15 upwards ↑
Outside air connection Ø 10 horizontal → or vertical ↓ possible (Please specify when ordering)
